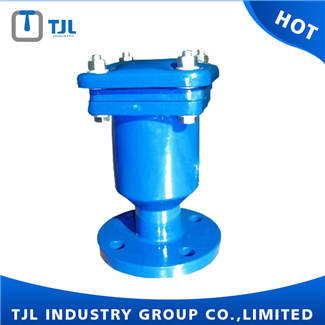

Single Opening Exhaust Flange Air Valve
- Product Name:Single Opening Exhaust Flange Air Valve
- Unit Price:
- Design Standard:EN1074-4
- FTF Dimension:
- Flange Connection:EN1092-2
- Inspection and Test:EN1074-4
- Delivery Time:15-30days
- Email: info@tjlindustry.com
- Tel: +86-22-28219562
- Fax: +86-22-28219554 ext.8888
Product Overview
Single opening exhaust valve is mainly made up of body, bonnet, valve stem, floating ball, nozzle and other components. It was used for small diameter pipelines(pipes for DN50-200mm), it plays a role as a exhaust pipe in pipelines will not have suffocation or air resistance. For example, there will be negative pressure inside the pipes at any time when pumps come across power outage and automatic suction can protect the safety of pipelines.
Product Usage
1、This valve is suitable for water and hot water pipelines whose temperature does not exceed 100℃, so that the air in the pipeline is completely discharged.
2、Install a dual-port exhaust valve, and be sure to install a protective valve and valve underneath to avoid water shut-off.
Technical Parameters
| Body,bonnet | Cast iron HT200、Stainless steel、Carbon steel | A pilot project | |
| Floating ball | 304 Stainless steel、Vent H59 Steel H59 brass | Working pressure | 1.0Mpa |
| Sealing ring | NBR | Sealing pressure | 1.1Mpa |
| Elastic screw | A3 | Intensity pressure | 1.5Mpa |
Screw Boundary Dimensions
| DN(mm) | ZG | ∅ | H |
| 15 | 1/2〞 | 135 | 205 |
| 20 | 3/4〞 | 135 | 205 |
| 25 | 1〞 | 135 | 205 |
| 40 | 1 1/2〞 | 150 | 205 |
| 50 | 2〞 | 150 | 205 |
