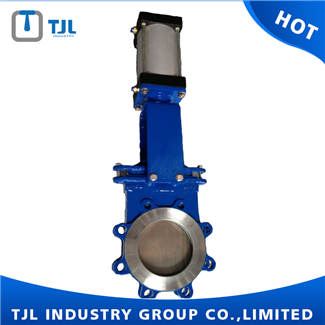

Ductile Iron Knife Pneumatic Gate Valve
- Product Name:Ductile Iron Knife Pneumatic Gate Valve
- Unit Price:
- Design Standard:MSS-SP81
- FTF Dimension:MSS-SP81
- Flange Connection:ASME B16.5 CL150/DIN 2501 PN10-16/EN1092 PN10-16 /ISO 7005-2/JIS B2212 10K
- Inspection and Test:MSS-SP81/ISO 5208/API598
- Delivery Time:15-30days
- Email: info@tjlindustry.com
- Tel: +86-22-28219562
- Fax: +86-22-28219554 ext.8888
Knife Pneumatic Gate Valve Product Usage
Knife gate valve with knife type damper, has good shearing action, the most suitable for pulp, powder material, such as fiber is difficult to control the fluid flow, widely used in papermaking, petrochemical, mining, drainage, food and other industries. With multiple seats to choose from, and can be on the basis of field control requirements, equipped with electric or pneumatic actuators, realize the automation of valve operation.
Knife Pneumatic Gate Valve Product Features
1.The structure of the ultra short lengh, save material, can make the pipeline system greatly reduce the overall weight;
2.Tack up the effective space is little, can effectively support the pipeline strength, can reduce the possibility of pipeline vibration;
3.Choose austenitic stainless steel gate, decay resistance performance is greatly improved, can effectively prevent because of damper seal leakage caused by corrosion
4.PTFE packing on using the flexible, reliable seal, flexible operation of the light;
5. Has the function of knife gate can effective brake circuit medium of various kinds of sundry;
6. Hard seal stainless steel material, the disc spray welding processing, can extend the valve to temperature and pressure requirements.
Knife Pneumatic Gate Valve Executive Standard
| Product specification | Design spec | Face to Face | Flange end | Test&check |
JB/T8691 MSS SP-81 | GB/T12221 MSS SP-81 | GB/T9113、JB/T79 HG/T205592、EN1092 ASME B16.5/16.47 | GB/T 26480 GB/T 13927 MSS SP |
Knife Pneumatic Gate Valve Main Performance Specifications
| Nominal pressure | Test pressure | Working temperature | Applicable medium | |
| Shell | Seal | |||
| 0.6 | 2.4 | 1.8 | ≤900℃ | Pulp, waste water, coal slurry, ash, slag water mixture |
| 1.0 | 1.5 | 1.1 | ||
Knife Pneumatic Gate Valve Main Part Materials
| Part name | Material | |
| Body | WCB | ZG2Cr25Ni20Si2 |
| Disc | 20、25 | |
| Yoke | WCB | ZG15Cr1Mo1V |
| Stem | 20Cr13 | 38CrMoA1A |
| Seat | 25(Carbide surfacing) | ZG2Cr25Ni20Si2 |
| Packing gland | WCB | |
Knife Pneumatic Gate Valve Main Part Materials
| Body, up bonnet | Carbon steel, stainless steel |
| Disc | Stainless steel |
| Stem | Stainless steel |
| Seal ring | Rubber, PTFE, stainless steel, Hard alloy |
Knife Pneumatic Gate Valve Main Performance Specification
| Nominal pressure | PN |
| Shell test | 1.5XPN |
| Sealing test | 1.1XPN |
| Working temperature | 80℃ or less four fluorine rubber seal 180℃ or less hard seal 425℃ or less |
| Applicable medium | Syrup, pulp, waste water, coal slurry, slag, water mixtures |
